dGate SW
Swing Doors • Ten-Sensor Detection • CE Certified
Adjustable speed swing gates. Access control equipment with swing doors and flexible configuration, engineered to direct the flow of people intelligently based on the direction of door opening — a comfortable, efficient entry process. This speed gate is a solution conceived in its smallest details to bring innovation, quality and design to the access control market. dGate provides comfort, sophistication and security for users. Optional – card collector.
Robustness and Elegance for All Spaces
This access gate with adjustable swing doors is a solution conceived in its smallest details to bring innovation, quality and design to the access control market. dGate provides comfort, sophistication and security for users.

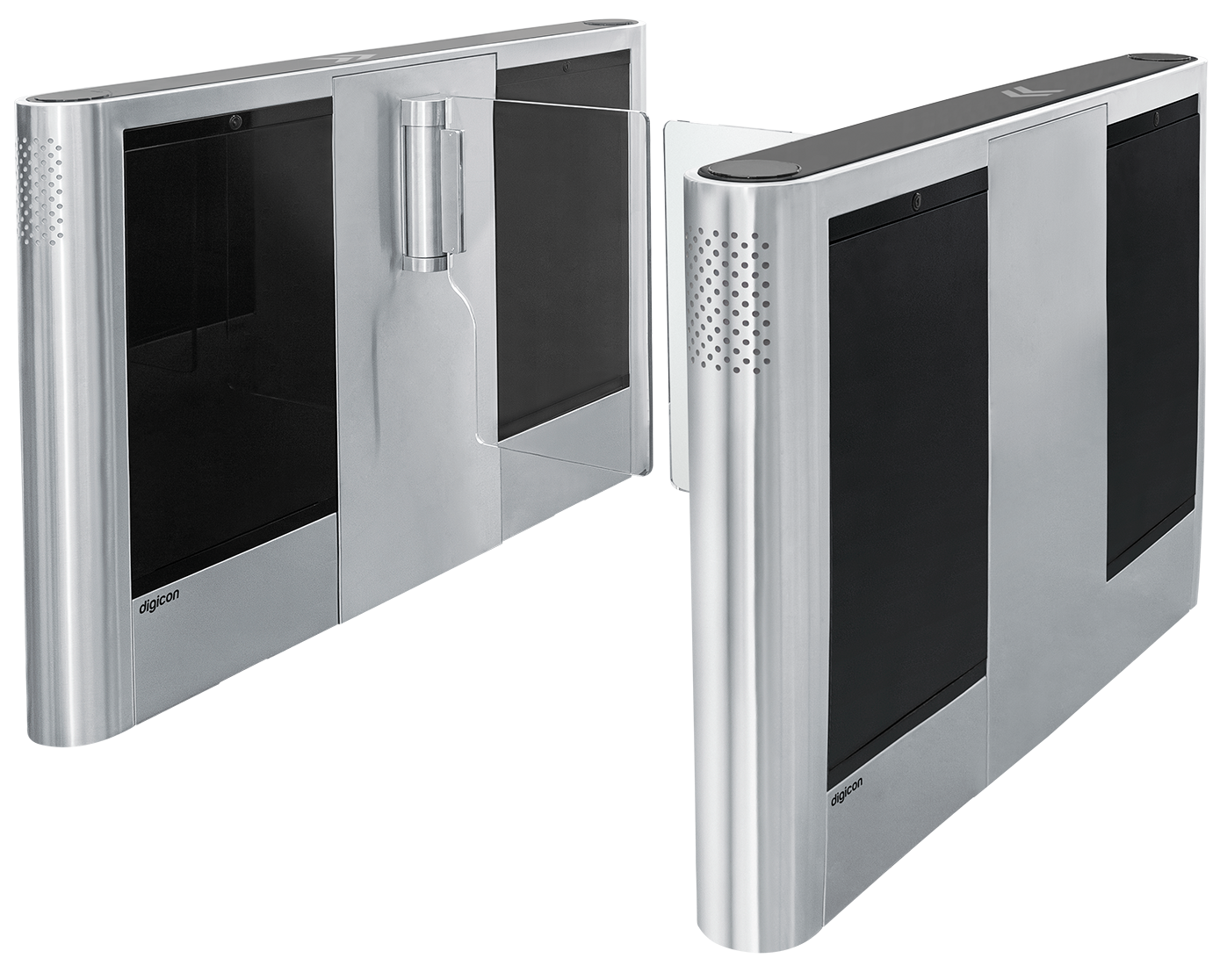

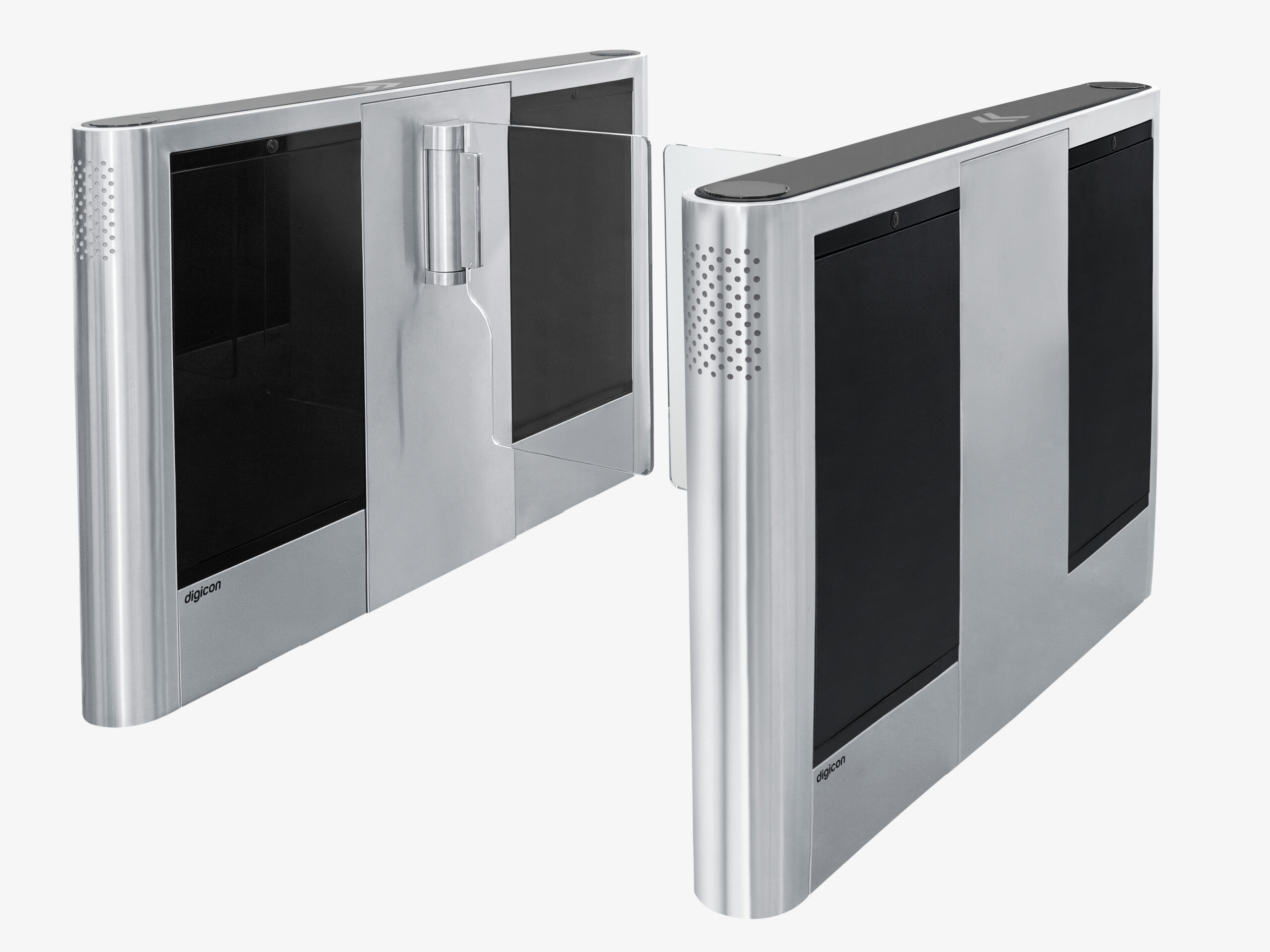

A motorized brushless mechanism opens the doors only after a user is identified and authorized, while ten infrared sensors positioned at mid and leg height watch the passage for tailgating, reverse-direction entry, and obstructions. Doors come in glass or 12mm polycarbonate, with top cover and side panels in stainless steel or tempered glass.
Engineered for Performance
Advanced sensors and processing for seamless access.
Ten-Sensor IR Detection
Ten infrared sensors line the passage corridor at mid and leg height, including two pairs that form a dedicated safety zone. The array detects passage direction, tailgating attempts, stopped users, and obstructions in the door path.
Five Access Modes
Entry and exit are configured independently: controlled both ways, controlled one way with the other free or locked, locked both ways, or free both ways. Door speed, passage timeout, and access-with-doors-open are all configurable.
RGB Pictogram Guidance

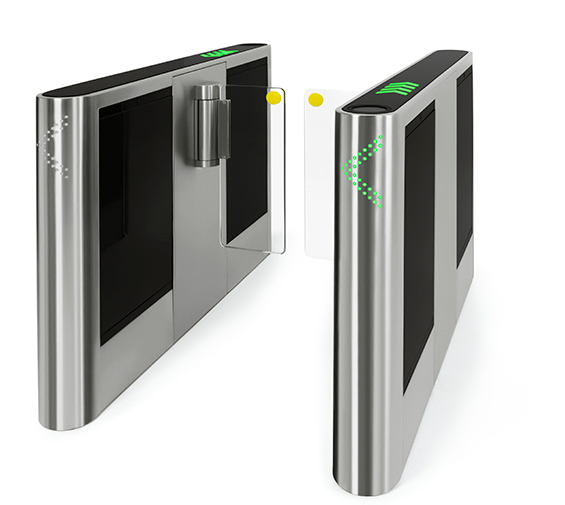

Four high-brightness RGB pictograms guide users through the gate — two front orientation pictograms and two upper operation pictograms, one of each per direction. Green indicates an authorized passage, red a denied one. The upper pictogram is expandable to two RGB LED modules.
Anti-Fraud & Anti-Crush
An audible antifraud system flags tailgating, passage against the permitted direction, and passage without validation. Crossed IR sensors cover the swing area at a configurable range, and the doors reopen the moment an obstacle is detected.
Multi-Credential Support
Dedicated internal space houses the reader of your choice — RFID or MIFARE proximity, 2D barcode, or fingerprint biometrics in 1:N or 1:1 mode. Readers can also mount at the module ends. The optional Digicon MCA control board adds TCP/IP database lookup with offline local storage.
Signature Industrial Design
Industrial design by Alexander Neumeister — the German designer behind projects for Siemens, Hitachi, and Thyssen Henschel — delivering both aesthetic excellence and functional precision.
Controlled Access, Comfortable Passage
Doors open the moment a user is authorized, then close behind them.
- Motorized swing doors open on authorization and close behind each user
- Ten infrared sensors detect tailgating, reverse entry, and stopped users
- Quick and precise closing with new sensing algorithms
- Compatible with bi-directional and multi-lane configurations
- 920mm width accommodates wheelchairs, strollers, and carts
- Anti-crush protection reopens the doors whenever an obstacle is detected
- Manual release on power failure; automatic opening on emergency alarm
Available Passage Widths
Mix and match widths.
Ideal Applications
The dGate SW is designed for high-end facilities.
Technical Specifications
dGate SW — Technical Data

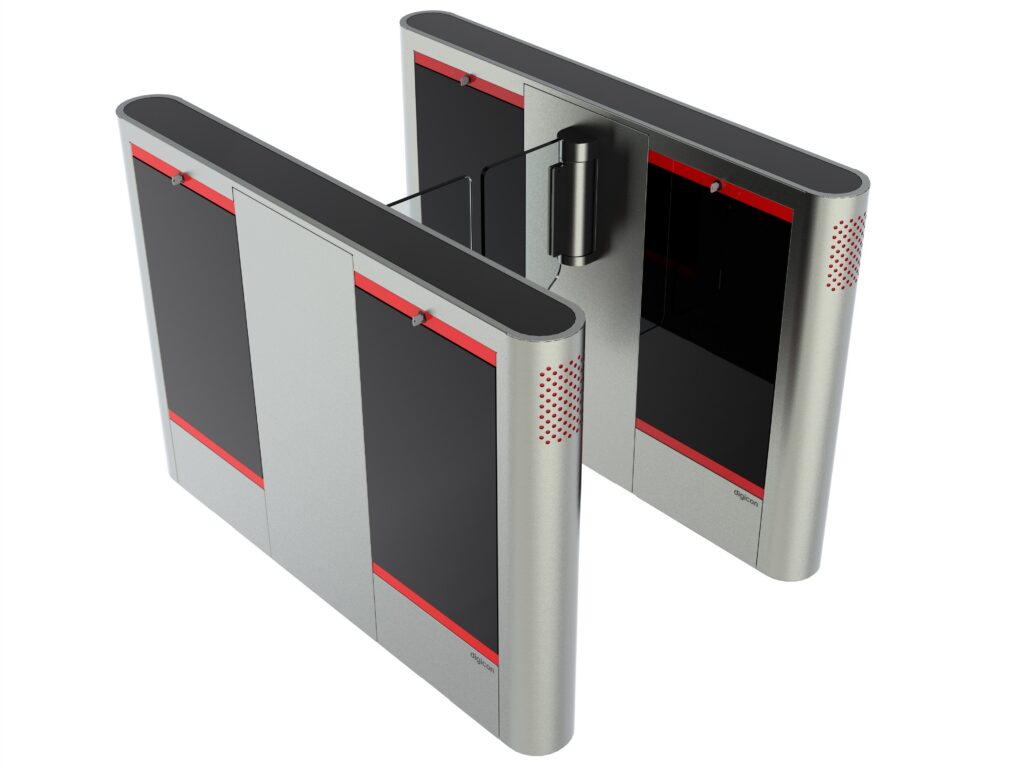

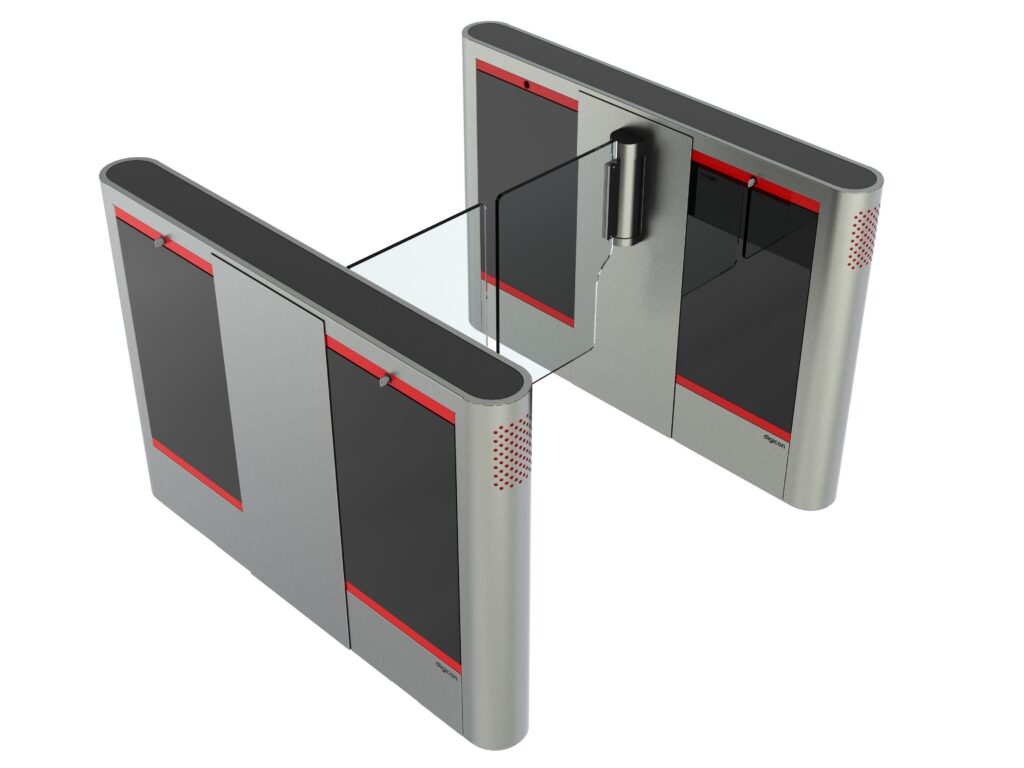

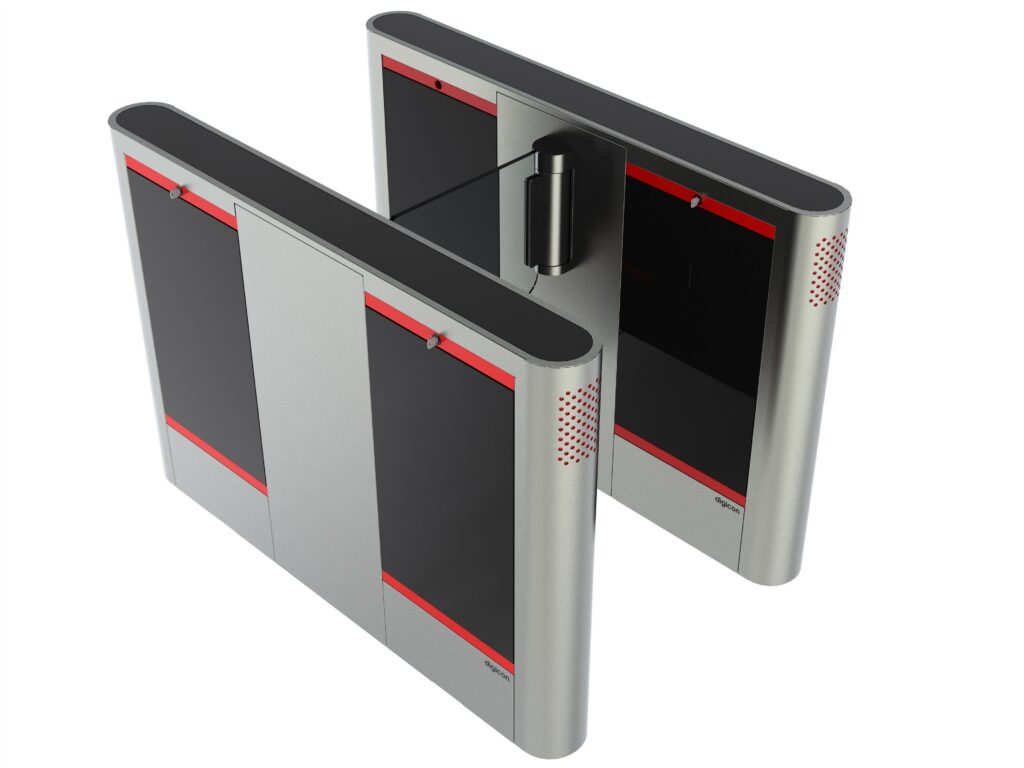

| Passage Widths | 20.5″ (520mm) · 36″ (920mm) |
| Cabinet dimensions | 55.7″ L × 39.1″ H × 10.3″ D / 26.3″ including door swing (1416 × 993 × 262mm / 667mm) |
| Module width | 8.93″ (227mm) per cabinet; 11.53″ (293mm) between adjacent lanes |
| Door reach | 41.45″ (1053mm) on the 920 configuration; 25.71″ (653mm) on the 520 |
| Door panel | Glass or 0.47″ (12mm) polycarbonate |
| Top cover and side panels | Stainless steel or tempered glass |
| Housing | 0.08″ (2mm) brushed stainless steel; carbon steel with epoxy paint on request |
| Internal chassis | Carbon steel, 0.08″–0.24″ (2–6mm) |
| Weight | 330–385 lbs (150–175 kg) per packaged module |
| Modules per passageway | Two — a Receiver Module plus a Transmitter or Receiver/Transmitter Module |
| Operating mode | Normally closed; motorized opening on authorization |
| Operating states | Controlled, Free, and Locked — selectable independently for entry and exit |
| Directionality | Uni-directional or bi-directional (configurable) |
| Mean door open/close time | 1 second |
| Mean operation cycle | 6 seconds |
| Motor | dPower brushless permanent magnet with electromechanical brake |
| Position control | Magnetic encoder — no mechanical wear |
| Power supply | 90–240 VAC, 50/60 Hz |
| Consumption — startup | 45–60 W |
| Consumption — standby | 15–25 W |
| Consumption — operation | 40–60 W |
| MTBF | Greater than 10,000 hours |
| MCBF | Greater than 8,000,000 cycles |
| Operating temperature | 32–104 °F (0–40 °C) |
| Preventive maintenance | Every 6 months |
| Proximity credentials | RFID and MIFARE card readers |
| Barcode | 2D barcode reader option |
| Biometrics | Fingerprint, 1:N or 1:1 with card technology |
| Reader mounting | Dedicated internal space, plus optional mounting at the module ends |
| Serial interface | RS-232 |
| Inputs / outputs | Dry contacts, or commands over RS-232 |
| Integration | Dry-contact I/O integrates with almost any access control board on the market |
| Optional controller | Digicon MCA board — TCP/IP database lookup with local storage for offline operation |
| Card collection | Optional card collector urn, 120-card capacity |
| CE marking | European Union conformity |
| Accessibility | 20.5″ (520mm) and 36″ (920mm) models are specified to serve people with special needs |
| ADA | 36″ (920mm) exceeds the 32″ ADA clear-width minimum |
| Safety systems | Anti-crush protection; manual release on power failure; automatic opening on emergency alarm |
